Reinforced Concrete Manhole Frame & Cover

Concrete Drain Cover Malaysia



Reinforced Concrete Manhole Cover Set  JConcrete Drain Cover Malaysia


Concrete Drain Cover Malaysia
Concrete Drain Cover Malaysia



product specification

Cover
Product Code G
mm		 H
mm		 I
mm		 Weight
kg
MC1824A 400 500 30 11

*Scroll to right to see more details.

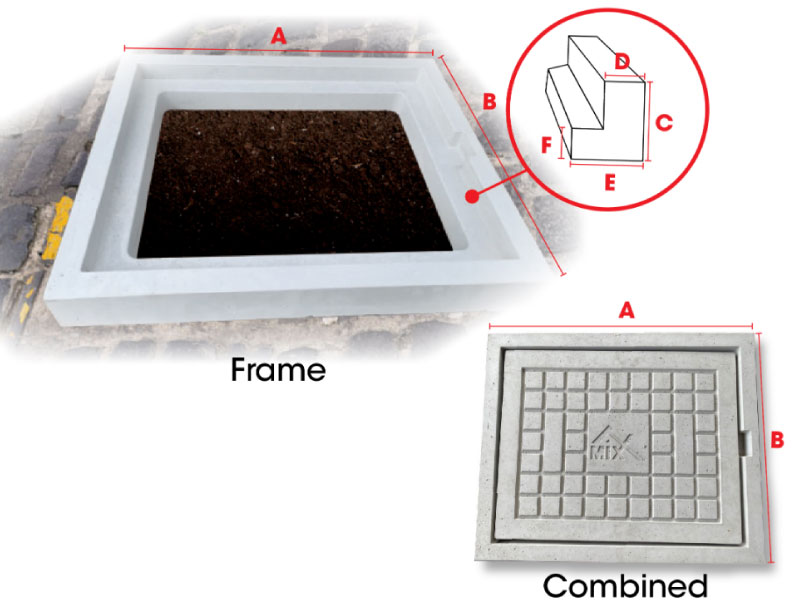

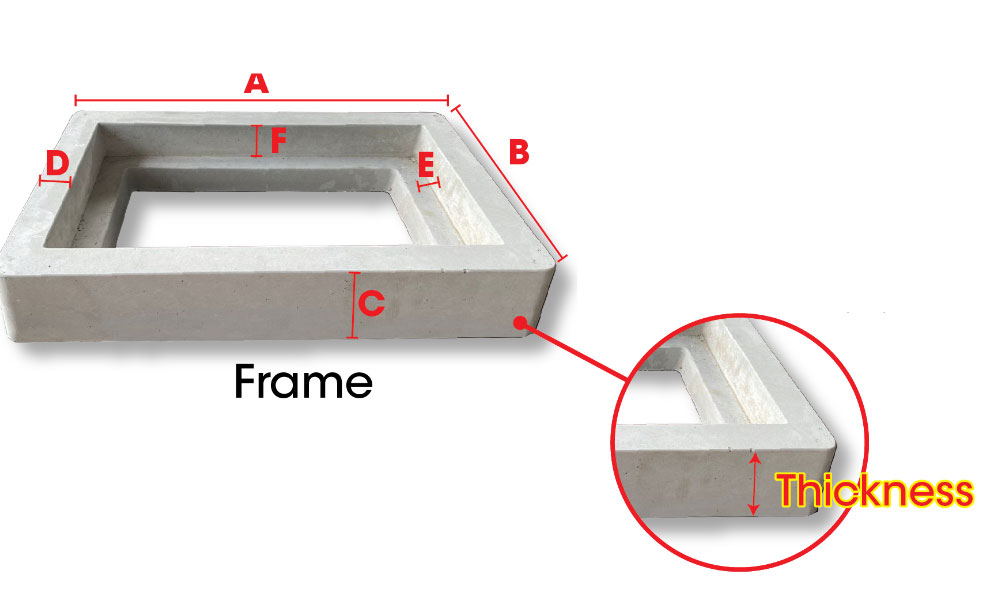

Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 Weight
kg
MC1824A 570 470 70 30 70 40 14

*Scroll to right to see more details.







Reinforced Concrete Heavy Duty  F
Mainhole Frame & Cover Concrete Drain Cover Malaysia


Concrete Drain Cover
Concrete Drain Cover

product specification

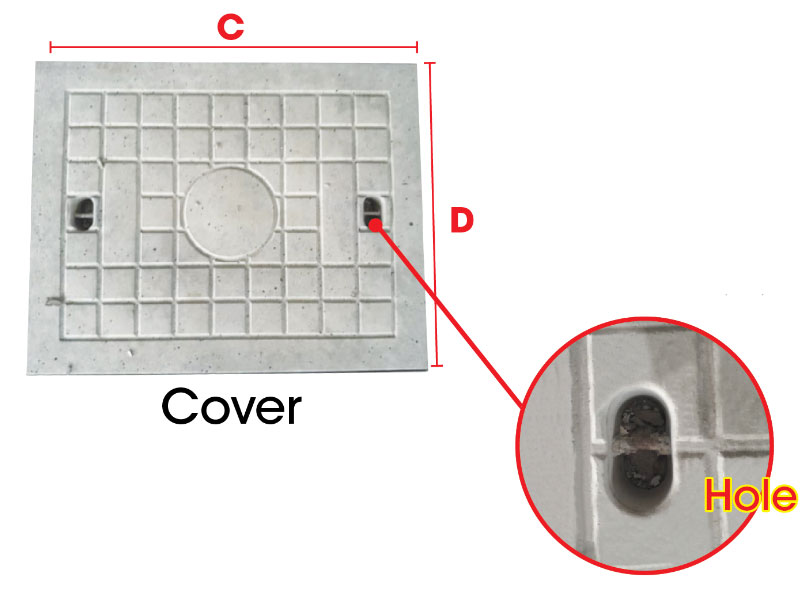

Cover
Product Code Length (C)
mm		 Width (D)
mm		 Thickness
mm		 Weight
kg
MC5560 500 500 60 32

*Scroll to right to see more details.

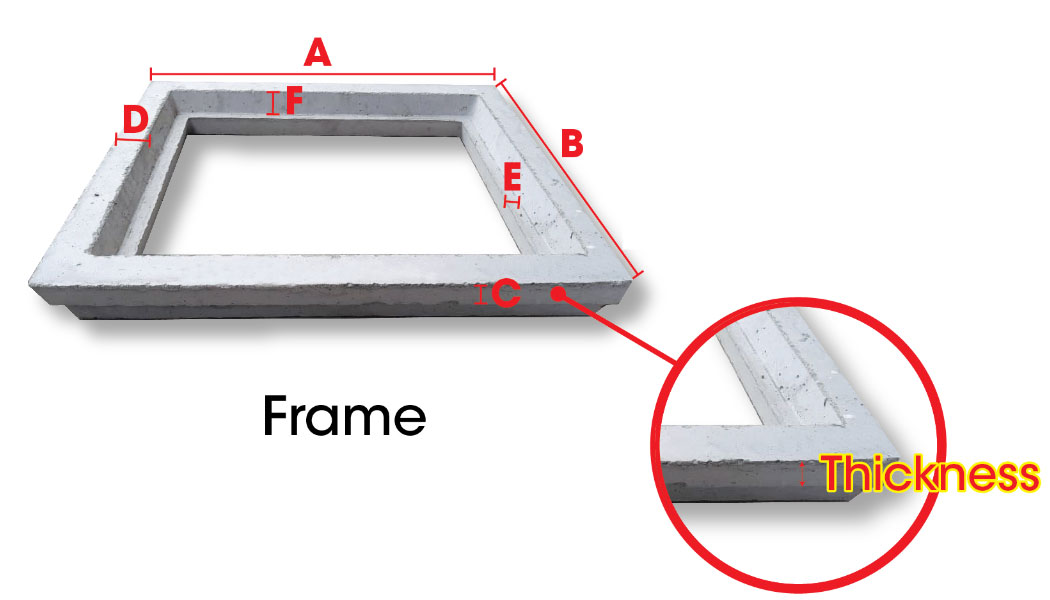

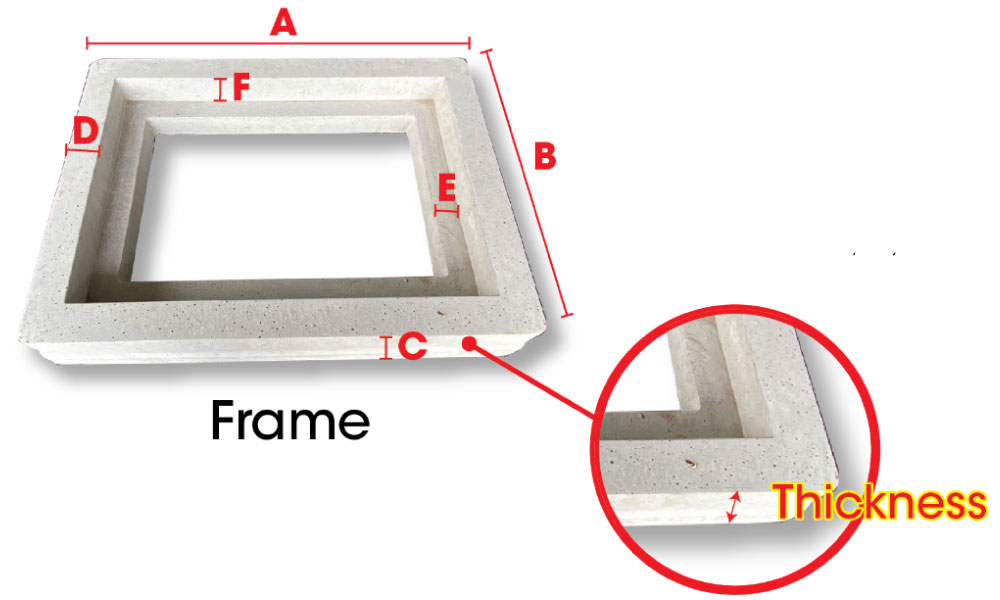

Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 Weight
kg
CF5560 600 600 100 50 40 60 38

*Scroll to right to see more details.

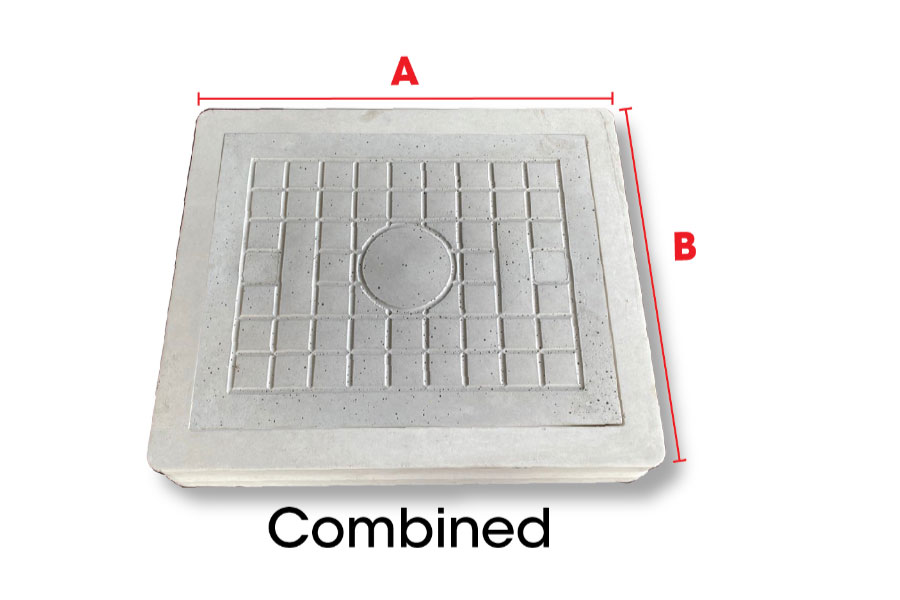

Combined
Product Code Length (A)
mm		 Width (B)
mm		 Thickness
mm		 Weight
kg
MC5560 600 600 100 70

*Scroll to right to see more details.







Reinforced Concrete Drain Cover & Frame  G


product specification

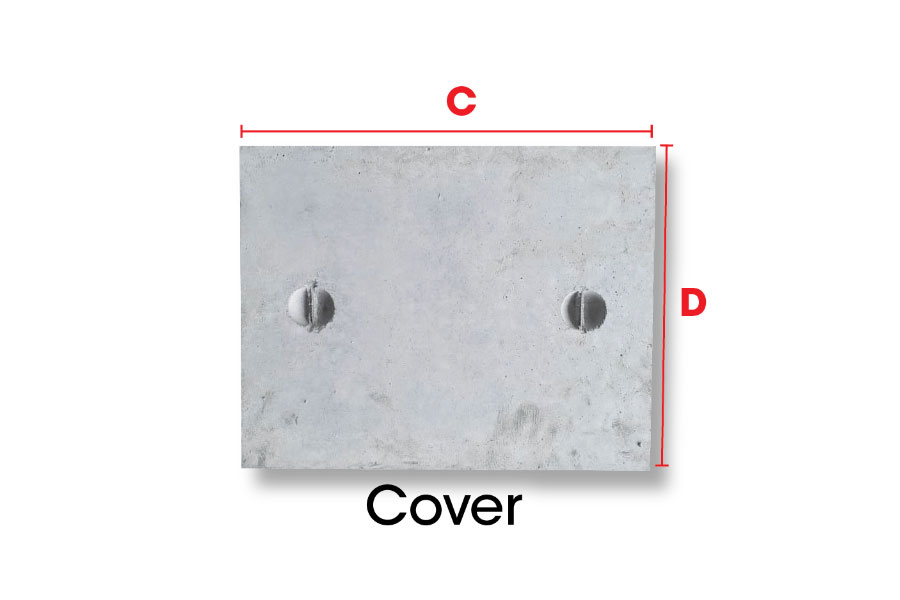

Cover
Product Code Length (C)
mm		 Width (D)
mm		 Thickness
mm		 Weight
kg
MC5560 500 500 60 32

*Scroll to right to see more details.

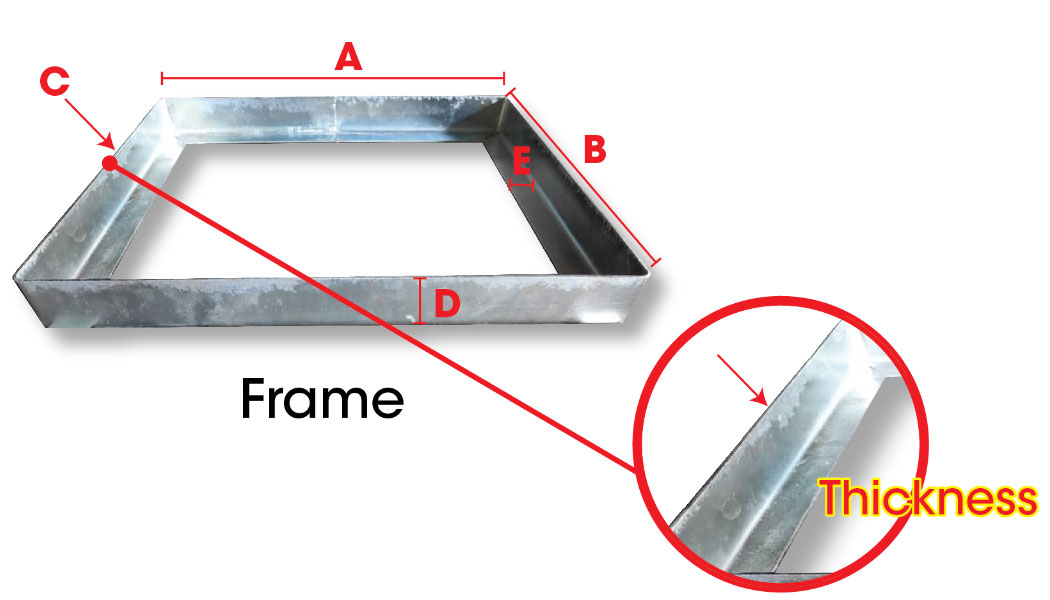

Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 Weight
kg
SF5560 510 510 2.5 60 30 3.6

*Scroll to right to see more details.

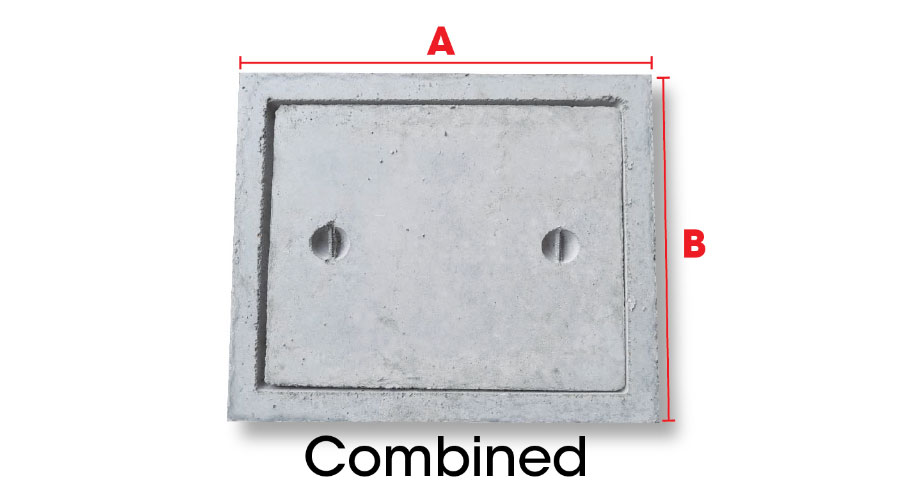

Combined
Product Code Length (A)
mm		 Width (B)
mm		 Thickness
mm		 Weight
kg
MCSF5560 510 510 60 35.6

*Scroll to right to see more details.







Reinforced Concrete Heavy Duty H
Mainhole Frame & Cover


product specification

Cover
Product Code Length (C)
mm		 Width (D)
mm		 Thickness
mm		 Weight
kg
MC5460 500 400 60 27

*Scroll to right to see more details.



Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 Weight
kg
CF5460 600 500 100 45 35 50 35

*Scroll to right to see more details.

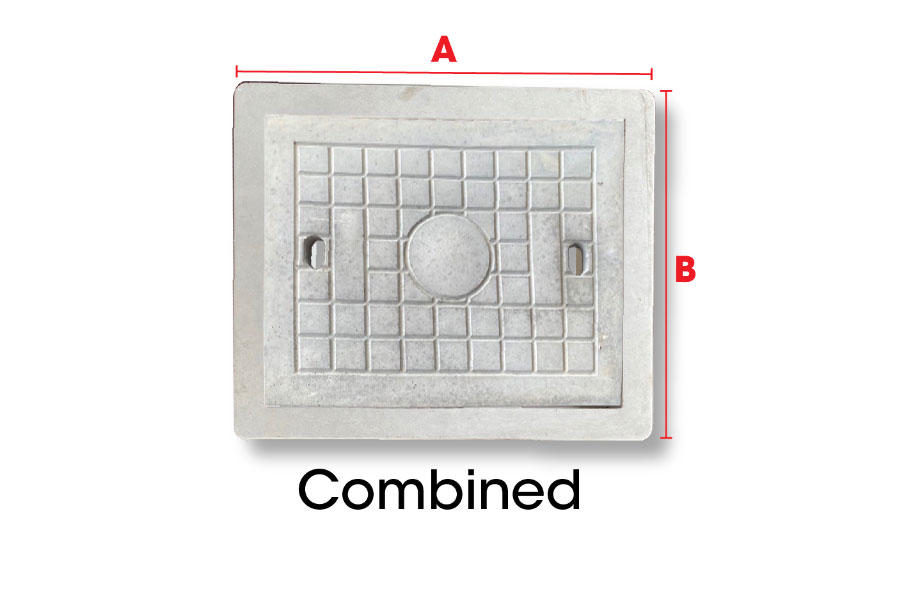

Combined
Product Code Length (A)
mm		 Width (B)
mm		 Thickness
mm		 Weight
kg
MCSF5460 600 500 100 62

*Scroll to right to see more details.







Reinforced Concrete Drain Cover & Frame I


product specification

Cover
Product Code Length (C)
mm		 Width (D)
mm		 Thickness
mm		 Weight
kg
MC5460 500 400 60 27

*Scroll to right to see more details.



Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 Weight
kg
SF5460 510 410 2.5 60 30 3.4

*Scroll to right to see more details.



Combined
Product Code Length (A)
mm		 Width (B)
mm		 Thickness
mm		 Weight
kg
MCSF5460 510 410 60 30.4

*Scroll to right to see more details.







Reinforced Concrete Drain Cover & Frame K


product specification

Cover
Product Code Length (C)
mm		 Width (D)
mm		 Thickness
mm		 Weight
kg
M1824C 530 430 40 15.3

*Scroll to right to see more details.



Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 Weight
kg
M1824C 630 530 80 50 20 40 16.4

*Scroll to right to see more details.



Combined
Product Code Length (A)
mm		 Width (B)
mm		 Thickness
mm		 Weight
kg
M1824C 630 530 80 31.7

*Scroll to right to see more details.
